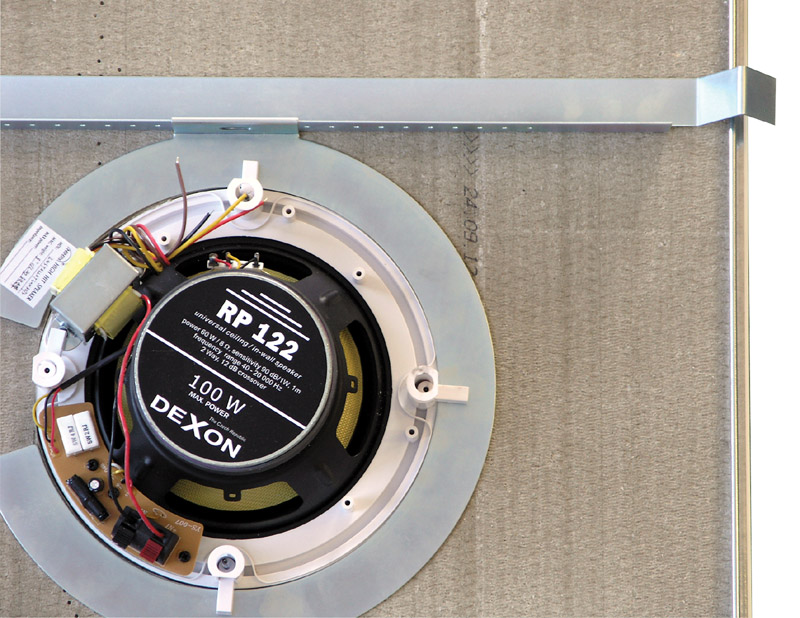

Holder of speaker for cassette ceilings

Brief description: contains of 1× annulus, 2× transom, galvanized steel sheet thickness 1.5 mm

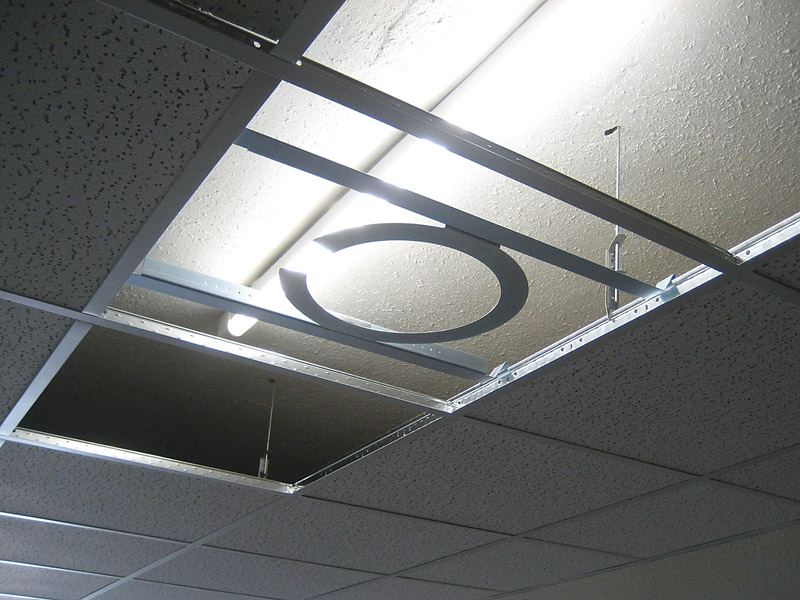

Suitable for: installing a 1 pc of ceiling loudspeaker Dexon RP 122, RPT 122, RP 123, RPT 123 to mineral coffered ceiling with grid 600 mm

Cat. nr.: 210029
31,07 € with VAT
in stock

Help needed? Services for free Recommend product

 Catalogue page  Next technical informations

Description

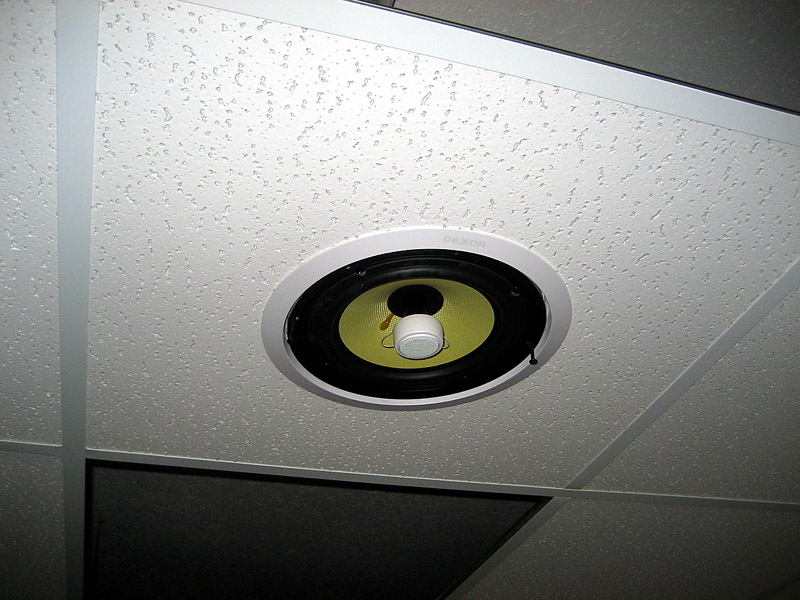

slouží k instalaci podhledového reproduktoru Dexon RP 122, RPT 122, RP 123, RPT 123 do minerálních kazetových podhledů s rastrem 600 mm
hmotnost reproduktoru může být velká a proto instalace do kazetových minerálních stropů by způsobovala potíže – reproduktor materiál desky vytrhával. Tento držák, znemožňuje prořezávání desky minerálního stropu a tak podhledový reproduktor je bezpečně uchycen a nehrozí jeho vytržení.

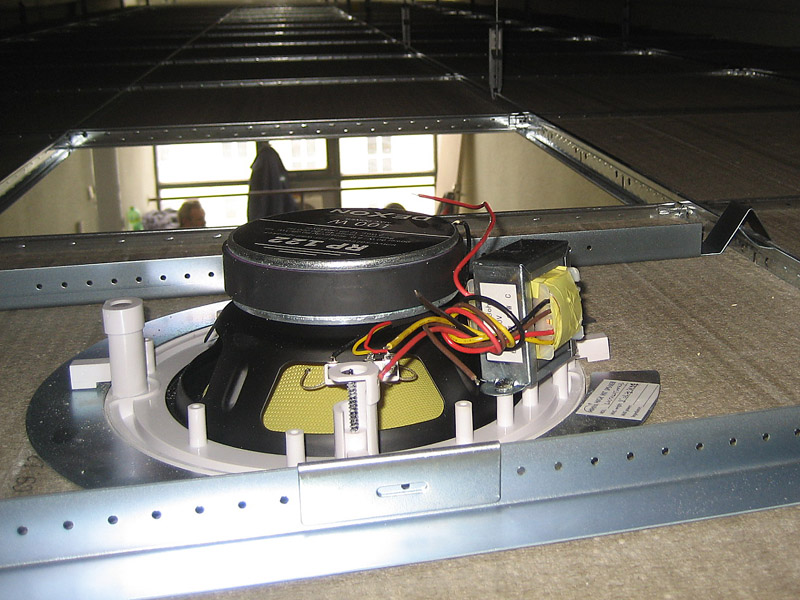

samozatahovací klapky reproduktoru jsou zachyceny za mezikruží

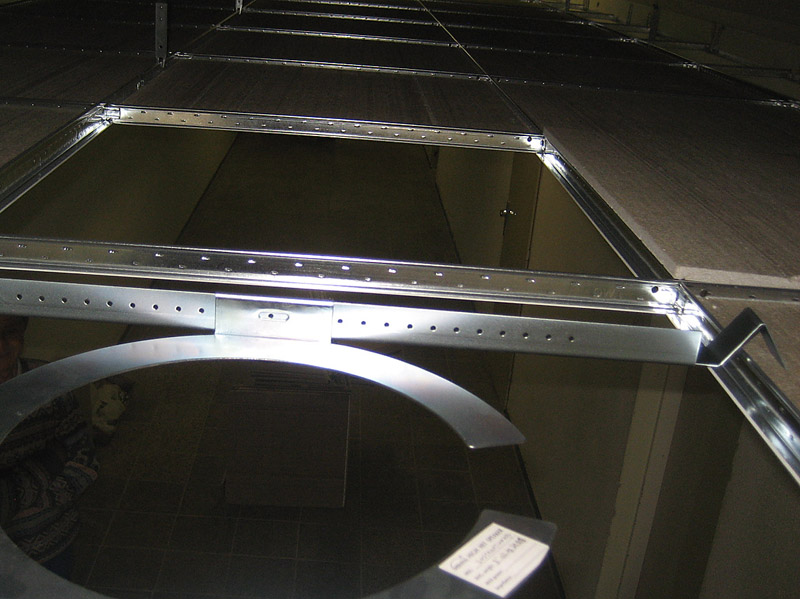

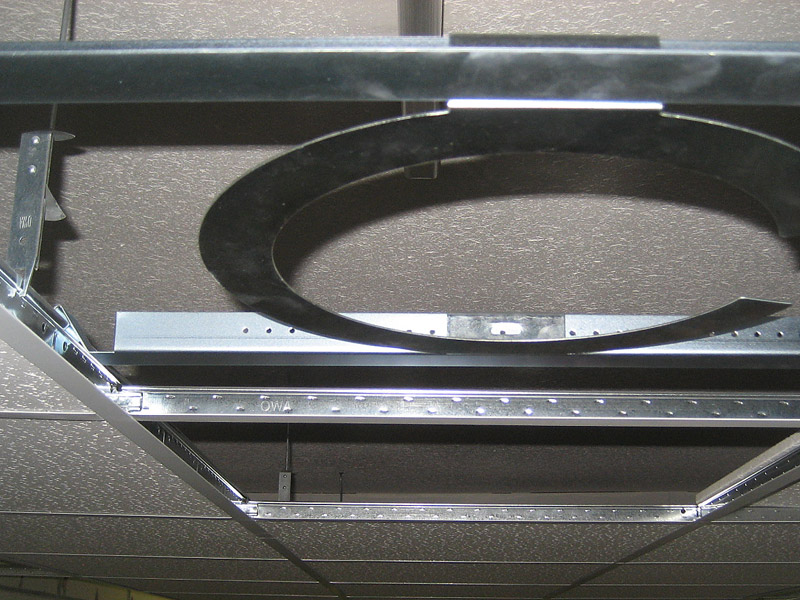

mezikruží lze na příčnících podélně posouvat

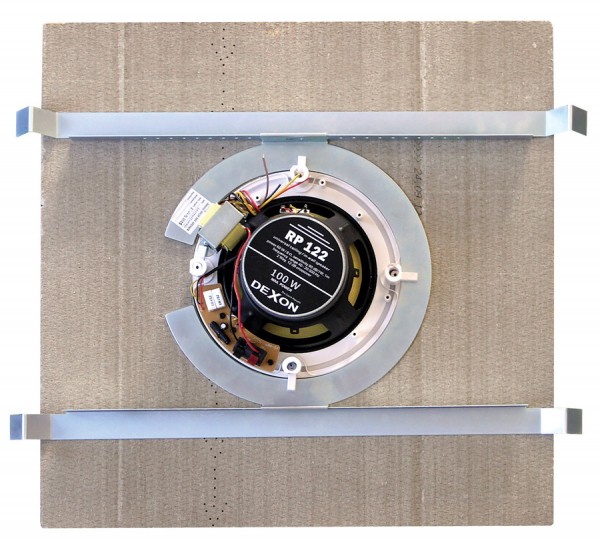

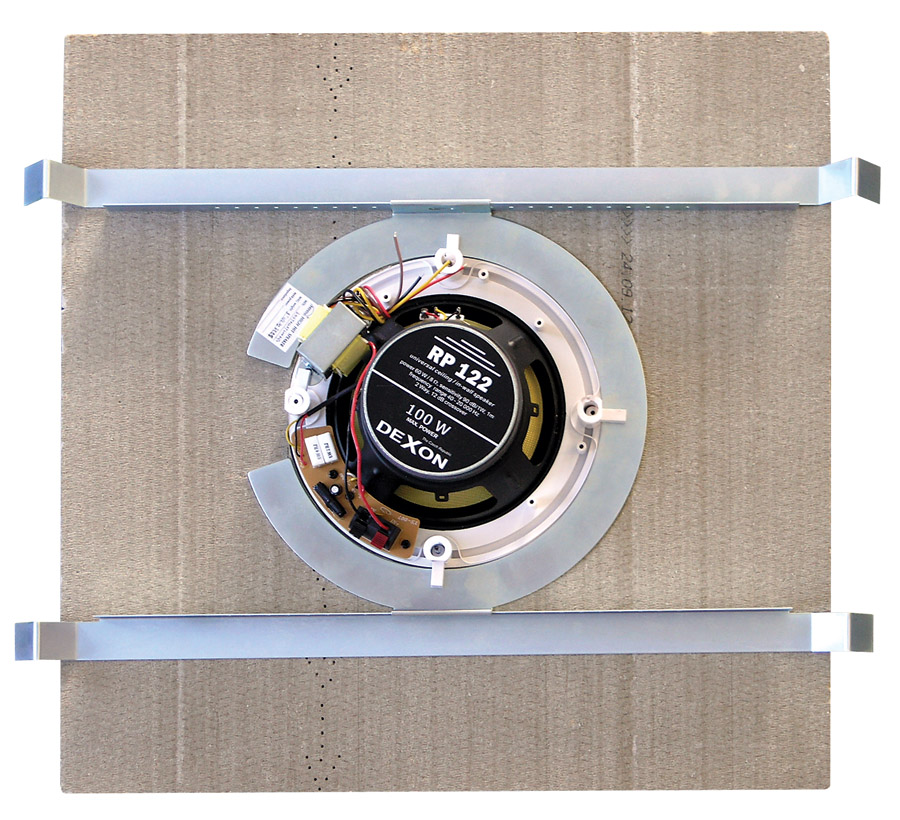

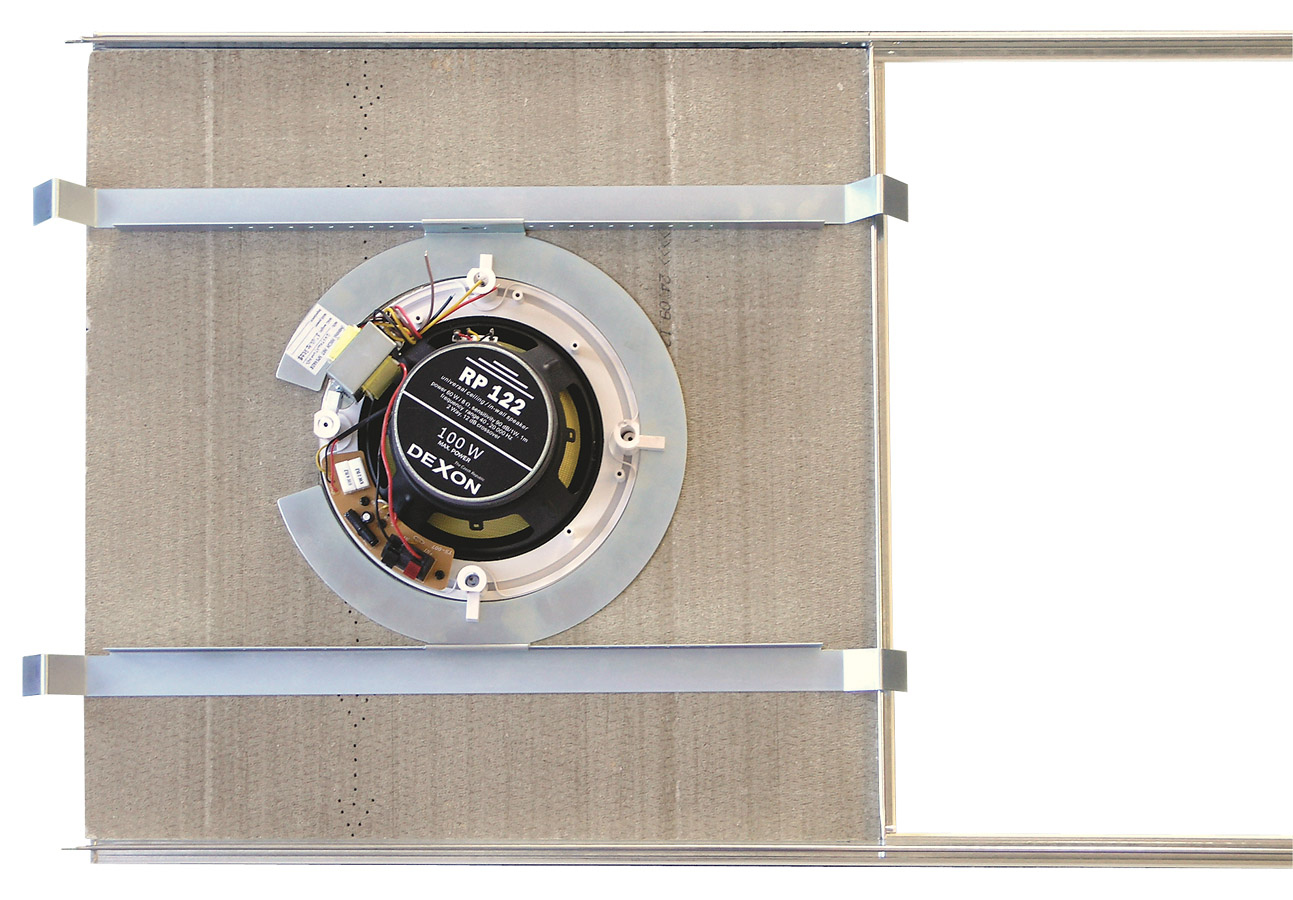

držák obsahuje mezikruží a dva ocelové příčníky
vyrobeno z pozinkované oceli
tl. plechu 1,5 mm
vnitřní Ø mezikruží 244 mm
vnější Ø mezikruží 314 mm
šířka ocelových příčníků 28 mm
délka ocelových příčníků vč. „V“ západky 860 mm
