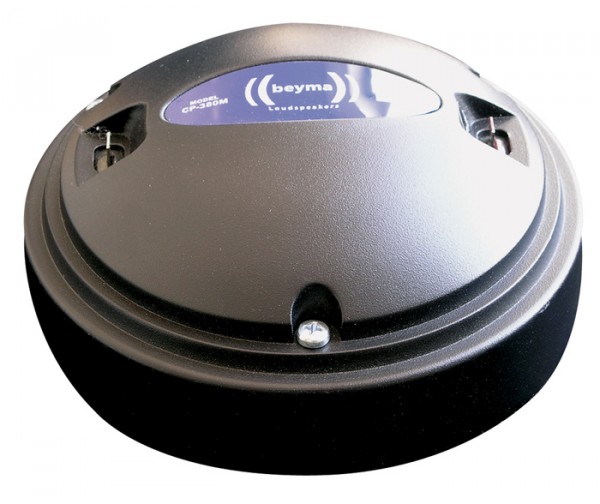

CP380/M loudtweeter compression driver

CP380/M loudtweeter compression driver

Brief description: 70 W, 8 Ω, 107 dB, 800 – 20 000 Hz, 1″ outlet

Suitable for: power tweeter section, for order 3pcs above, discount 20%

Cat. nr.: 02 333
146,47 € with VAT
on request

 pc
Help needed? Services for free Recommend product
Catalogue page Detail datasheet Speaker box projects Cabinet projects Next technical informations

Description

  • zatížitelnost 70 / >1,5 kHz W
  • impedance 8 Ω
  • Re 4,7 Ω
  • citlivost 107 s TD 250 dB/1W,1m
  • frekvenční rozsah 800 – 20 000 Hz
  • doporučená dělící frekvence > 1200 Hz
  • Ø cívky 44,4 mm
  • materiál membrány Polyester
  • materiál magnetu Ferit
  • rozměr A 146 mm
  • rozměr B 57 mm
  • rozměr C 1"
  • rozměr D 75 mm
