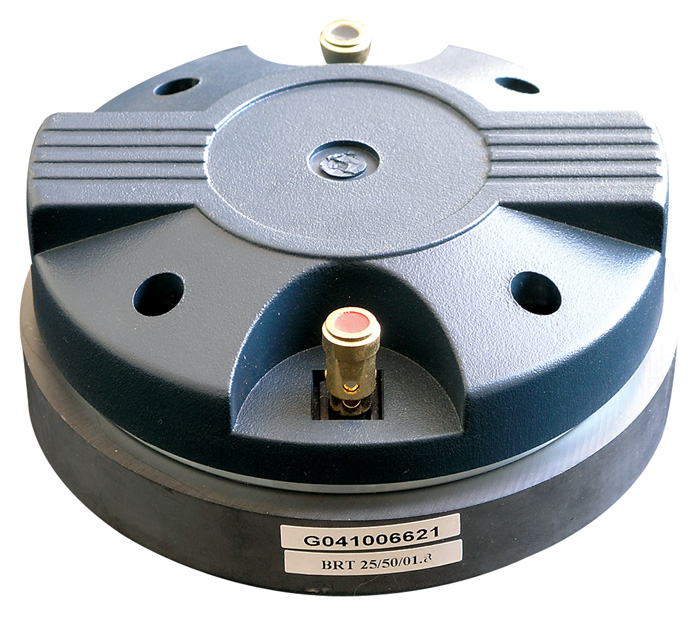

BRT 25/50/01, 8 tweeter compression driver

BRT 25/50/01, 8 tweeter compression driver

Brief description: 50 W RMS, 8 Ω, 101 dB with BRX 25/02, 1 200 – 20 000 Hz

Suitable for: professional speakers

Cat. nr.: 05 031
76,07 € with VAT
in stock

 pc
Help needed? Services for free Recommend product
Catalogue page Detail datasheet Speaker box projects Next technical informations

Description

  • zatížitelnost 50 W rms
  • impedance 8 Ω
  • Re 6 Ω
  • citlivost 101 s BRX 25/02 dB/1W,1m
  • frekvenční rozsah 1 200 – 20 000 Hz
  • doporučená děl. frekvence > 1 500 Hz
  • Ø cívky 44,2 mm
  • fs 1400 Hz
  • materiál membrány Ti
  • materiál cívky kapton / ccar
  • rozměr A 120 mm
  • rozměr B 56,6 mm
  • rozměr C 25 mm
  • rozměr D 59 mm
