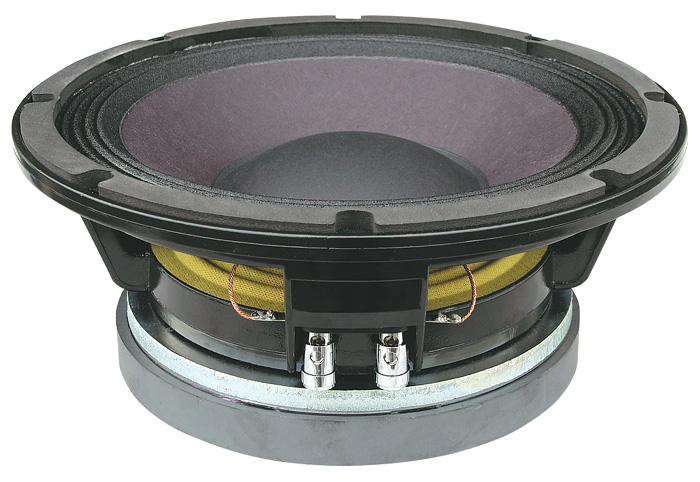

10MI100 mid-bass speaker

10MI100 mid-bass speaker

Brief description: 10″, 350 W AES, 8 Ω, 101 dB, 70 – 4 000 Hz

Suitable for: mid or mid-bass applications, for order 3pcs above, discount 20%

Cat. nr.: 02 172
212,39 € with VAT
in stock

 pc
Help needed? Services for free Recommend product
Catalogue page Detail datasheet Speaker box projects Cabinet projects Next technical informations

Description

  • nominální Ø 10"
  • zatížitelnost 350 W AES
  • impedance 8 Ω
  • citlivost 101 dB/1W,1m
  • frekvenční rozsah 70 – 4 000 Hz
  • Ø cívky 77 mm
  • hmotnost magnetu 6,5 kg
  • fs 89 Hz
  • Re 6,2 Ω
  • Qts 0,25
  • Vas 20 l
  • η0 5,2 %
  • Xmax 2 mm
  • rozměr A (vnější Ø) 261 mm
  • rozměr B (Ø instalačního otvoru) 228 mm
  • rozměr C (Ø magnetu) 192 mm
  • rozměr D (instalační hloubka) 108 mm
