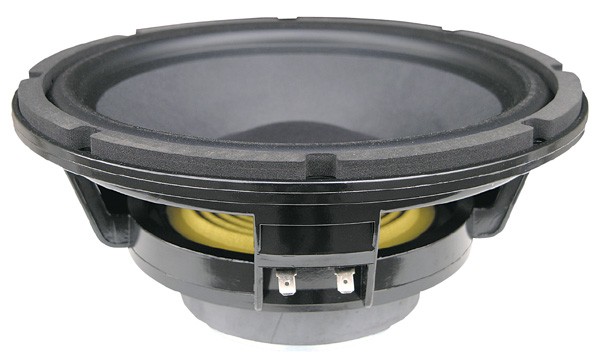

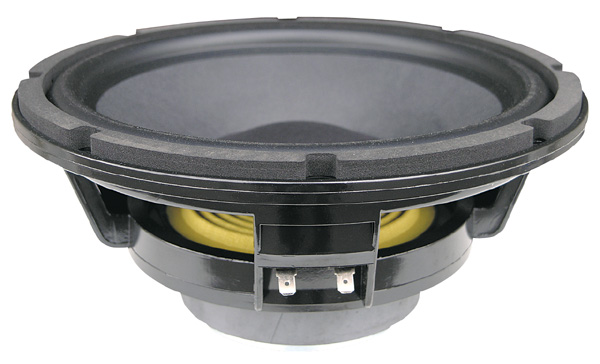

10BR60V2 bass speaker hifi

10BR60V2 bass speaker hifi

Brief description: 10″, 100 W RMS, 8 Ω, 92 dB, 30 – 5 000 Hz, HiFi

Suitable for: high-quality hi-fi speakers, subwoofers, for order 3pcs above, discount 20%

Cat. nr.: 02 040
105,80 € with VAT
on request

 pc
Help needed? Services for free Recommend product
Catalogue page Detail datasheet Speaker box projects Cabinet projects Independent product review Next technical informations

Description

  • nominální Ø 10"
  • zatížitelnost 100 RMS W
  • impedance 8 Ω
  • citlivost 92 dB/1W,1m
  • frekvenční rozsah 30 – 5 000 Hz
  • Ø cívky 50,8 mm
  • hmotnost magnetu 2,75 kg
  • fs 29 Hz
  • Re 6,5 Ω
  • Qts 0,39
  • VAS 142 l
  • η0 0,75 %
  • Xmax 6,5 mm
  • rozměr A (vn+ější Ø) 260 mm
  • rozměr B (Ø instalačního otvoru) 228 mm
  • rozměr C (Ø magnetu) 120 mm
  • rozměr D (celková hloubka) 117 mm
