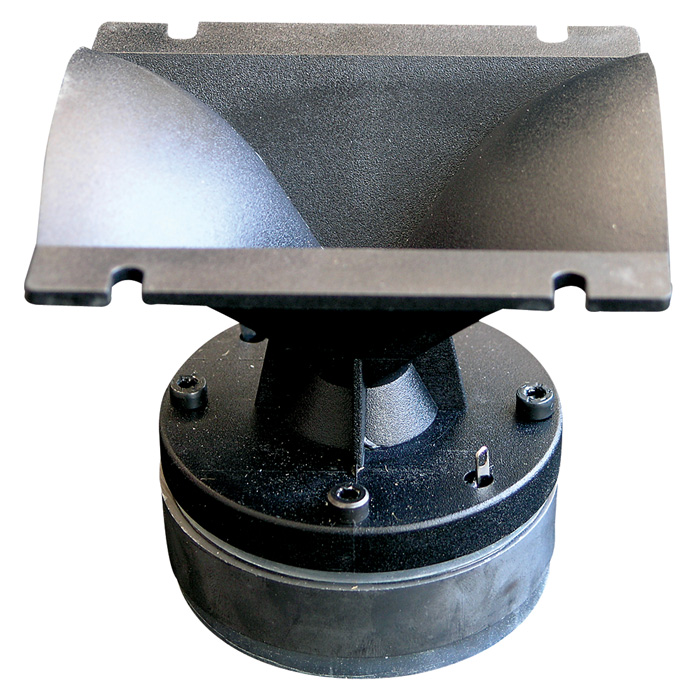

CP09 tweeter

CP09 tweeter

Brief description: 15 W AES, 8 Ω, 104 dB, 2 000 – 20 000 Hz

Suitable for: professional speakers celopásmové, for order 3pcs above, discount 20%

Cat. nr.: 02 290
60,29 € with VAT
on request

 pc
Help needed? Services for free Recommend product
Catalogue page Detail datasheet Speaker box projects Cabinet projects Next technical informations

Description

  • zatížitelnost 15 AES W
  • impedance 8 Ω
  • Re 5 Ω
  • citlivost 104 dB/1W,1m
  • frekvenční rozsah 2 000 – 20 000 Hz
  • doporučená dělící frekvence 6 000 / 12 dB/oct Hz
  • Ø cívky 25,8 mm
  • materiál membrány Al
  • materiál magnetu Ferit
  • rozměr A 98 mm
  • rozměr B 92 mm
  • rozměr C 72 mm
  • rozměr D 84 mm
