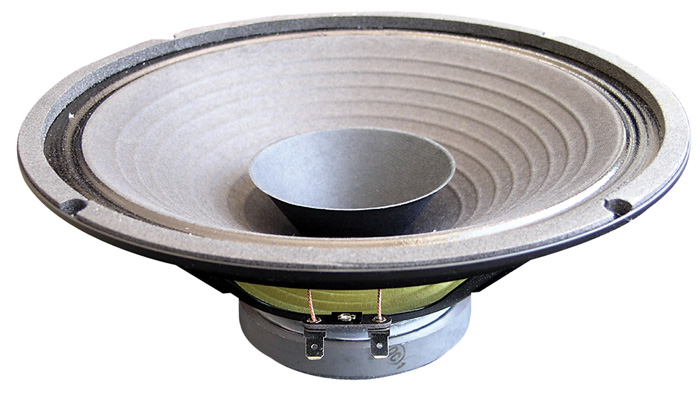

10AG / N speaker fullrange

10AG / N speaker fullrange

Brief description: 10″, 100 W RMS, 8 Ω, 97 dB, 60 – 17 000 Hz, fullrange

Suitable for: industrial applications, for order 3pcs above, discount 20%

Cat. nr.: 02 084
74,72 € with VAT
in stock

 pc
Help needed? Services for free Recommend product
Catalogue page Detail datasheet Speaker box projects Cabinet projects Next technical informations

Description

  • nominální Ø 10"
  • zatížitelnost 100 RMS W
  • impedance 8 Ω
  • citlivost 97 dB/1W,1m
  • frekvenční rozsah 60 – 17 000 Hz
  • Ø cívky 34,6 mm
  • hmotnost magnetu 1,25 kg
  • fs 90 Hz
  • Re 7,4 Ω
  • Qts 1,32
  • VAS 30 l
  • η0 1,15 %
  • Xmax 2 mm
  • rozměr A 258 mm
  • rozměr B 230 mm
  • rozměr C 102 mm
  • rozměr D 95,5 mm
