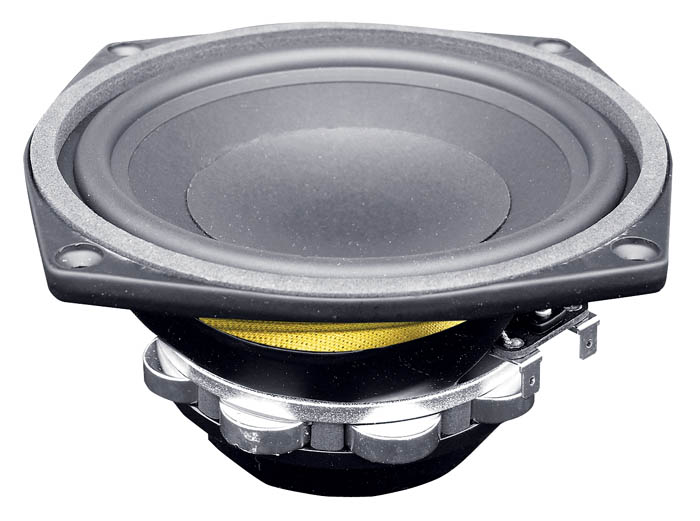

6P200Nd mid-bass speaker

6P200Nd mid-bass speaker
Discount 7 %

Brief description: 6,5″, 200 W AES, 8 Ω, 92 dB, 60 – 9 000 Hz, Nd magnet, extended displacement, water proof

Suitable for: small bass and compact applications, light weight speaker systems, for order 3pcs above, discount 20%

Cat. nr.: 02 156
131,66 € with VAT
in stock

last price: 140,95 €
you save: 9,29 €

 pc
Help needed? Services for free Recommend product
Catalogue page Detail datasheet Speaker box projects Cabinet projects Next technical informations

Description

  • nominální Ø 6,5"
  • zatížitelnost 200 W AES
  • impedance 8 Ω
  • citlivost 92 dB/1W,1m
  • frekvenční rozsah 60 – 9 000 Hz
  • Ø cívky 51,7 mm
  • hmotnost magnetu 1,6 kg
  • fs 56 Hz
  • Re 5,3 Ω
  • Qts 0,29
  • Vas 11,9 l
  • η0 0,65 %
  • Xmax 5,5 mm
  • rozměr A (vnější Ø) 162,5 mm
  • rozměr B (Ø instalačního otvoru) 145,3 mm
  • rozměr D (instalační hloubka) 78 mm
